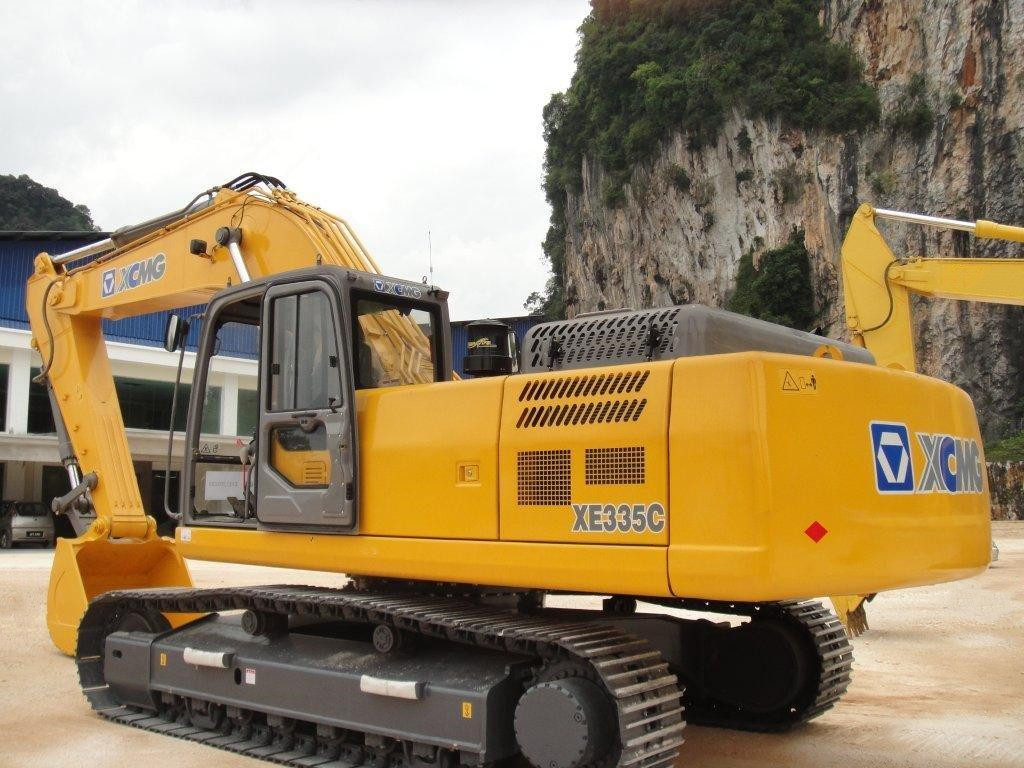

Brand New Construction Machinery - XCMG XE335C Crawler Excavator
| Brand New Construction Machinery - XCMG XE335C Crawler Excavator | ||||
|
Items |
Unit |
Parameters |
||
|
Operating weight |
kg |
33800 |
||
|
Bucket capacity |
m³ |
1.4 |
||
|
Engine |
Model |
Engine |
ISUZU AA-6HK1XQP |
|
|
No. of cylinders |
--- |
6 |
||
|
Output power |
kW/ r/min |
190.5/2000 |
||
|
torque/speed |
N.m |
872.8/1700 |
||
|
Displacement |
L |
7.79 |
||
|
Main performance |
Travel speed(H/L) |
km/h |
5.5/3.3 |
|
|
Rotating speed |
r/min |
9.7 |
||
|
Gradeability |
° |
≤35 |
||
|
Ground pressure |
kPa |
66 |
||
|
Bucket digging force |
kN |
263 |
||
|
Arm digging force |
kN |
225 |
||
|
Maximum traction |
kN |
261 |
||
|
Hydraulic system |
Main pump |
-- |
2 |
|
|
Rated flow of main pump |
L/min |
2×280 |
||
|
Pressure of prime valve |
MPa |
34.3/37 |
||
|
Pressure of travel system |
MPa |
34.3 |
||
|
Pressure of swing system |
MPa |
26.5 |
||
|
Pressure of pilot system |
MPa |
3.9 |
||
|
Oil Capacity |
Fuel tank capacity |
L |
630 |
|
|
Hydraulic tank capacity |
L |
350 |
||
|
Engine oil capacity |
L |
28 |
||
|
Appearance size |
Overall length |
mm |
11388 |
|
|
Overall width |
mm |
3190 |
||
|
Overall height |
mm |
3515 |
||
|
Width of platform |
mm |
2950 |
||
|
Length of crawler |
mm |
4725 |
||
|
Overall width of chassis |
mm |
3190 |
||
|
Width of crawler |
mm |
600 |
||
|
Wheel base of crawler |
mm |
3183 |
||
|
Crawler gauge |
mm |
2590 |
||
|
Clearance under counterweight |
mm |
1700 |
||
|
Min. ground clearance |
mm |
495 |
||
|
Min. tail swing radius |
mm |
3570 |
||
|
Working scope |
Max. digging height |
mm |
10074 |
|
|
Max. dumping height |
mm |
6898 |
||
|
Max. digging depth |
mm |
6972 |
||
|
Max. digging depth at the range of level 8 feet |
mm |
6728 |
||
|
Max. vertical wall digging depth |
mm |
5366 |
||
|
Max. digging reach |
mm |
10650 |
||
|
Min. swing radius |
mm |
4424 |
||
|
Worker |
Standard |
Length of boom |
mm |
6400 |
|
Length of arm |
mm |
2670 |
||
|
Bucket capacity |
m³ |
1.4 |
||
|
Optional |
Length of arm |
m³ |
2900 |
|
|
Bucket capacity |
m³ |
1.6/1.4 |
||
| Packaging Method | Nude | ||
| Delivery Method | Shipped by RORO or Bulk Cargo Ship or Containers | ||
| Delivery Time | Within 15 workdays after receiving the deposit | ||
| MOQ | 1 Unit | ||
| Unit Price | Negotiable | ||
| Payment Terms | T/T or L/C or discussed with customers. | ||
| Trade Terms | EXW, FOB, CFR, CIF, DAF, etc. | ||
| After-sales service | Response and provide satisfactory solutions within 24 hours. | ||
| Our Advantages |
Competitive Price ; Durable Quality ; On Time Delivery. Excellent After-sales Service. |
